M Series PD Flow Meter with Pulser on Mechanical Register

Place of Origin : China

Brand Name : COWELL

Model Number : M-80-P-1; M-80H-P-1

Certification : CE

Payment Terms : T/T

Delivery Time : 7-10 Working Days

Packaging Details : Wooden Case applicable for export

MOQ : 1

Supply Ability : 500 Unit Per month

Contact Now

M-80-P-1 PD Flow Meter with Mechanical Register, Pulser, Strainer & Air Eliminator

Characteristics

  • Excellent stepless adjusting mechanism allows a micro adjustment of the meter
  • High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service
  • Low pressure loss, a true gravity flow meter
  • Accuracy regardless of pressure fluctuations, temperature variation, viscosity
  • Choice of aluminum, cast iron and stainless steel materials of construction

Technical Data

Model

M-40-P-1

M-50-P-1

M-50H-P-1

M-80-P-1

M-80H-P-1

M-100-P-1

M-100H-P-1

M-150-P-1

M-150H-P-1

Size

40mm /1.5"

50mm / 2 "

80mm / 3 "

100mm / 4 "

150mm / 6 "

Flow Range
(L/Min)

25-250

38-380

55-550

75-750

115-1150

130-1300

170-1700

225-2250

300-3000

Volume/Rev.

0.309L

0.681L

1.839L

5.102L

9.507L

Max.Pressure

10Bar/150PSI

25Bar/350PSI

Accuracy

±0.2%

Repeatability

≤0.05%

Standard Measurement

Liter / US Gallon/IMP Gallon

Viscosity

30SSU~1,500,000SSU

Note:4"&6" flange available for M-150/6" Meter.

Constructure

M Series PD Flow Meter with Pulser on Mechanical Register

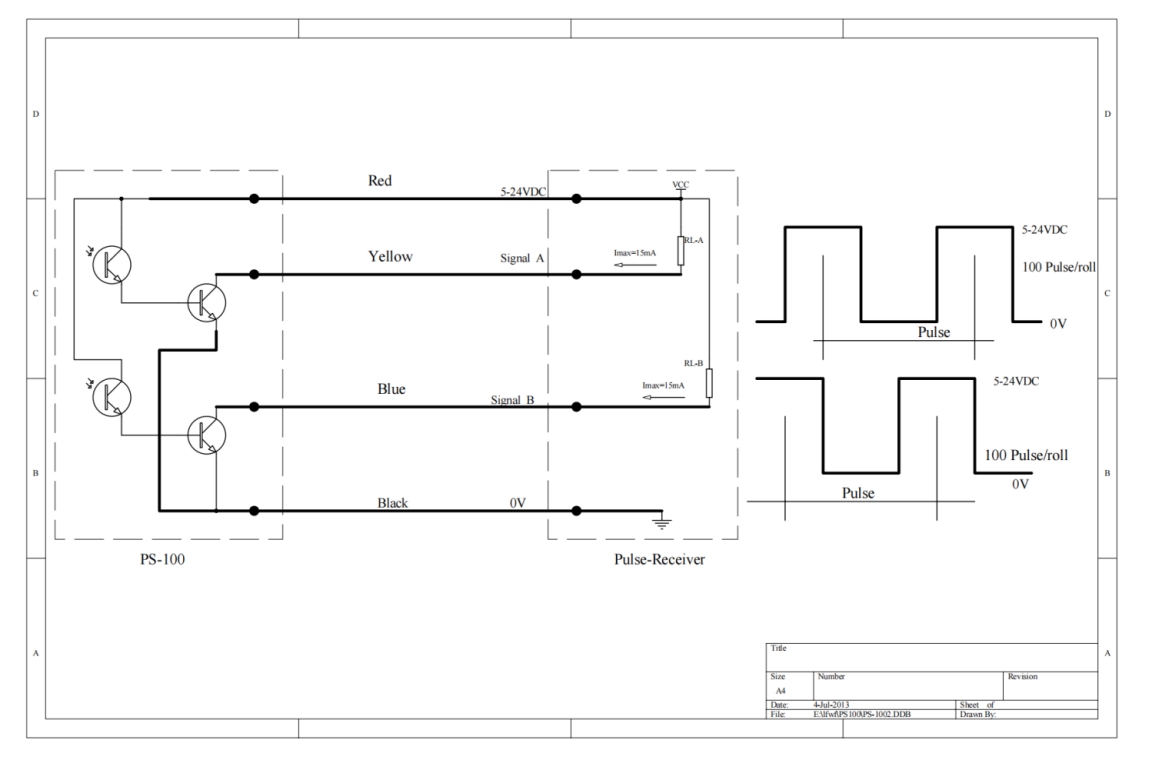

Pulser Diagram

M Series PD Flow Meter with Pulser on Mechanical Register
